CMIP Rapid Evaluation Framework (REF)#

Overview#

Here ESMValTool recipes are collected which will be used in the CMIP Rapid Evaluation Framework (REF).

Available recipes#

Recipes are stored in recipes

  • recipe_ecs.yml: Calculate equilibrium climate sensitivity (ECS)

  • recipe_tcr.yml: Calculate transient climate response (TCR)

  • recipe_tcre.yml: Calculate transient climate response to cumulative CO2 emissions (TCRE)

  • ref/recipe_ref_cre.yml: Maps and zonal means of longwave and shortwave cloud radiative effect

Example plots:#

../_images/map_lwcre_MPI-ESM1-2-LR_Amon.png

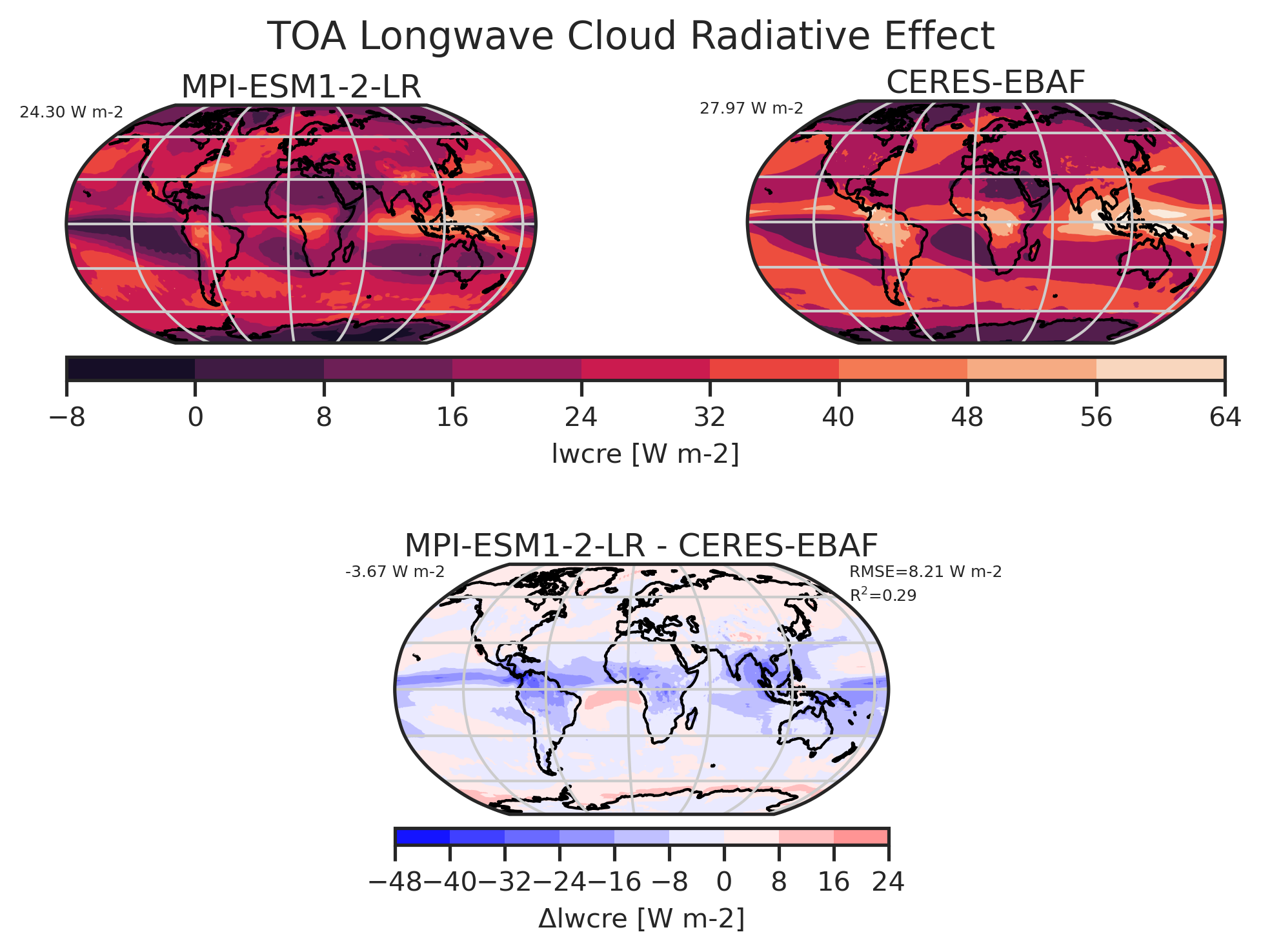

Fig. 34 Geographical map of the climatological mean longwave cloud radiative effect from MPI-ESM1-2-LR and CERES-EBAF Ed4.2 and their difference.#

../_images/variable_vs_lat_lwcre_ambiguous_dataset_Amon.png

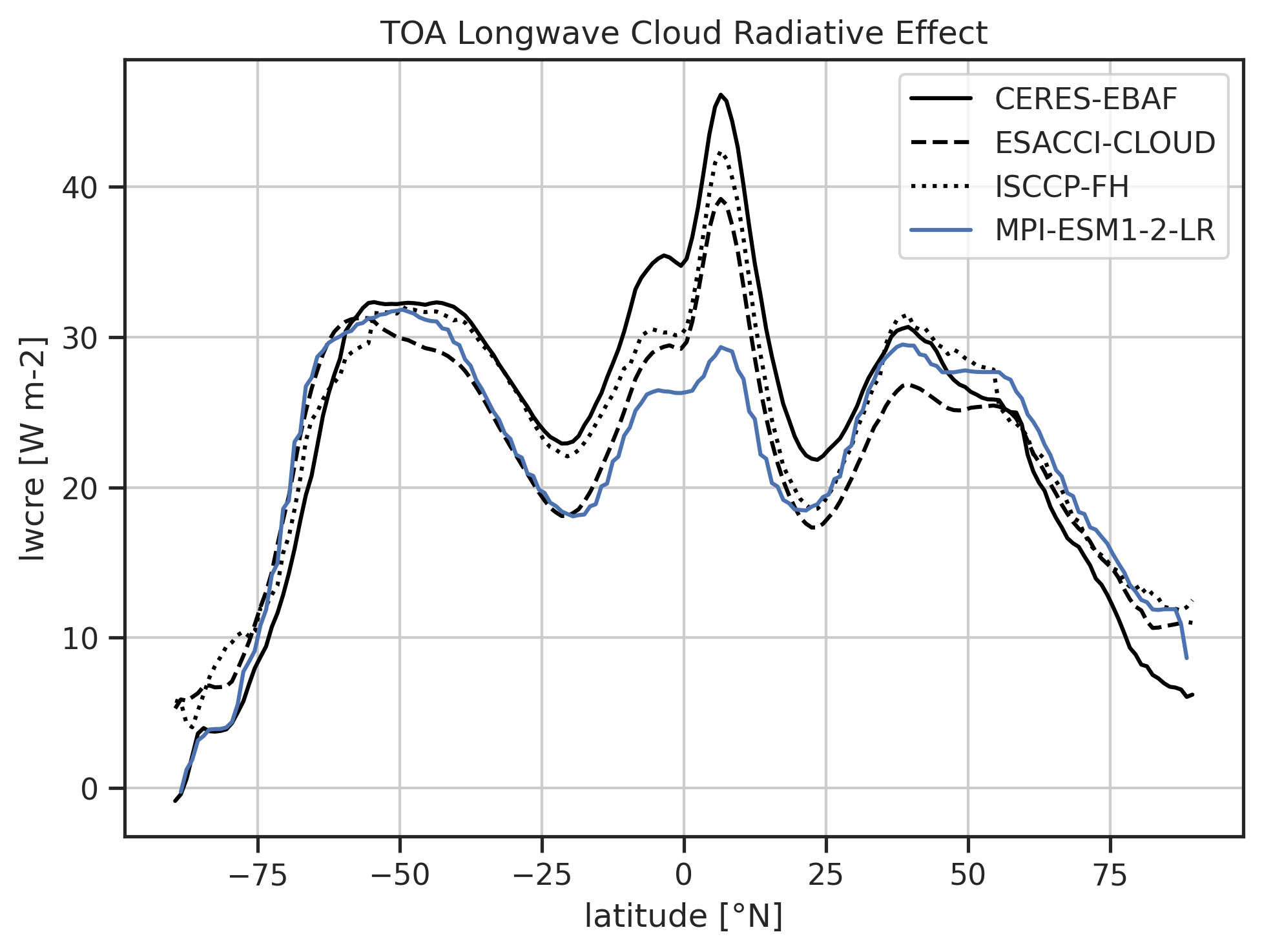

Fig. 35 Zonal averages of the climatological mean longwave cloud radiative effect from CERES-EBAF Ed4.2 (solid black), ESACCI-CLOUD (dashed black), ISCCP-FH (dotted black) and the MPI-ESM1-2-LR model (blue).#
